1GHz采樣；雙通道120MHz帶寬；隔離手持示波器+萬用表
生產廠商： 迪陽公司專賣
產品型號： DSO1122S
產品簡介： 全隔離手持示波表，示波器通道間完全隔離，示波器和萬用表通道隔離，示波器、萬用表與USB等通訊接口之間完全隔離，60MHz-200MHz 帶寬,1GSa/s 實時采樣率,2M 存儲深度, 6000 計數萬用表.5.6 吋大屏幕彩色液晶顯示，高分辨率(640*480）
產品簡介： 全隔離手持示波表，示波器通道間完全隔離，示波器和萬用表通道隔離，示波器、萬用表與USB等通訊接口之間完全隔離，60MHz-200MHz 帶寬,1GSa/s 實時采樣率,2M 存儲深度, 6000 計數萬用表.5.6 吋大屏幕彩色液晶顯示，高分辨率(640*480）
售價：￥5600
劃時代的多功能便攜式手持示波器:
| 型號 | 實時采樣率等效采樣 | 帶寬 | 存儲 | 簡介 | 價格 |
| DSO1050C | 250MS/s 實時 50GS/s 等效 | 50MHz | 32K | 示波器+頻譜+萬用表 | 3200元 |
| DSO1060 | 250MS/s 實時 50GS/s 等效 | 50MHz | 32K | 示波器+頻譜+6000計數萬用表 | 3600元 |
| DSO8060 | 250MS/s 實時 50GS/s 等效 | 50MHz | 32K | 示波器+任意信號源+頻率計數 器+頻譜分析+萬用表 | 3900元 |
| DSO1200 | 500MS/s 實時 50GS/s 等效 | 200MHz | 32K | 示波器+頻譜+6000計數萬用表 | 4900元 |
| | | | | | |
| DSO1062B | 1GS/s 實時 25GS/s 等效 | 60MHz | 1MB | 示波器+頻譜+6000計數萬用表 | 4900元 |
| DSO1102B | 1GS/s 實時 25GS/s 等效 | 100MHz | 1MB | 示波器+頻譜+6000計數萬用表 | 5400元 |
| DSO1202B | 1GS/s 實時 25GS/s 等效 | 200MHz | 1MB | 示波器+頻譜+6000計數萬用表 | 5900元 |
| | | | | | |
| DSO1062S | 1GS/s 實時 25GS/s 等效 | 60MHz | 1MB | 隔離示波器+頻譜+萬用表 | 5400元 |
| DSO1122S | 1GS/s 實時 25GS/s 等效 | 120MHz | 1MB | 隔離示波器+頻譜+萬用表 | 5600元 |
| DSO1152S | 1GS/s 實時 25GS/s 等效 | 150MHz | 1MB | 隔離示波器+頻譜+萬用表 | 5800元 |
| DSO1202S | 1GS/s 實時 25GS/s 等效 | 200MHz | 1MB | 隔離示波器+頻譜+萬用表 | 5980元 |
| | | | | | |
| DSO1062BV | 1GS/s 實時 25GS/s 等效 | 60MHz | 1MB | 示波器+頻譜+萬用表（內置視頻幫助，2G SD卡 | 4800元 |
| DSO1102BV | 1GS/s 實時 25GS/s 等效 | 120MHz | 1MB | 示波器+頻譜+萬用表（內置視頻幫助，2G SD卡 | 4980元 |
| DSO1202BV | 1GS/s 實時 25GS/s 等效 | 200MHz | 1MB | 示波器+頻譜+萬用表（內置視頻幫助，2G SD卡 | 5900元 |
| | | | | | |
| DSO1062CV | 1GS/s 實時 25GS/s 等效 | 60MHz | 40K | 示波器+頻譜+萬用表（內置視頻幫助，2G SD卡 | 4600元 |
| DSO1102CV | 1GS/s 實時 25GS/s 等效 | 120MHz | 40K | 示波器+頻譜+萬用表（內置視頻幫助，2G SD卡 | 4900元 |
| DSO1202CV | 1GS/s 實時 25GS/s 等效 | 200MHz | 40K | 示波器+頻譜+萬用表（內置視頻幫助，2G SD卡 | 5600元 |
| | | | | | |
全隔離手持示波表，示波器通道間完全隔離，示波器和萬用表通道隔離，示波器、萬用表與USB等通訊接口之間完全隔離，60MHz-200MHz 帶寬,1GSa/s 實時采樣率,2M 存儲深度, 6000 計數萬用表.5.6 吋大屏幕彩色液晶顯示，高分辨率(640*480）
2．附件：
.jpg) | .jpg) |
.jpg) | .jpg) |
.jpg) | .jpg) |
.jpg) | .jpg) |
3.其它圖片

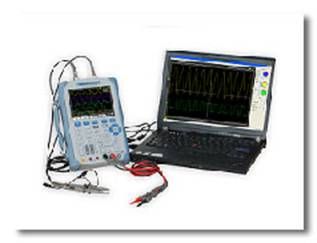

.jpg) 連接到計算機上就變成虛擬示波器 | .jpg) |
.jpg) | .jpg) |
.jpg) | .jpg) |
.jpg) | .jpg) |
.jpg) | .jpg) |
.jpg) | .jpg) |
.jpg) | .jpg) |
.jpg) | .jpg) |
4. Characteristic(Handheld Oscilloscope/Multimeter)
? 全隔離手持示波表，示波器通道間完全隔離，示波器和萬用表通道隔離，示波器、萬用表與USB等通訊接口之間完全隔離，隔離等級:1000V CATII,600V CATIII.
? High Bandwidth 60MHz-200MHz Oscilloscope,1GS/s sample rate, and 6000 Counts DMM with analog bargraph , and data recorder.
? 2M Memory Depth.
? High Refresh Rate (2500 frames)
? Large 5.6 inch TFT Color LCD Display，High Resolution(640*480）, Dual-Window Design --More clear, More Detailed
? One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform
? Easy-to-use pop-up menu with built-in multi-language help system
? 23 Automatic Measurements
? Waveform Math: Add, Subtract, Multiply, and Divide
? Store and recall over
? Automatic cursor tracking measurements
? XY Mode
? Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems
? Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames
? Pass-Fail function compares a stored waveform to an unknown input
? Average Mode for smoothing waveforms
? Square Wave Output (2V, 1kHz) for probe adjustment
? USB Host/Device 2.0 full-speed interface ,support removeable disk, LAN Optional ,Easy to control by PC or long-distance.
? Dimensions (mm):240(L)x165(W)x50(H), be carried easily.
? Labview\VB\VC Second Design instance.
5. 硬件技術指標：
| Model | DSO1202S | DSO1122S | DSO1062S |
| Oscilloscope mode | |||
| Bandwidth | 200MHz | 120MHz | 60MHz |
| Real-time Sample Rate | 1GSa/s | ||
| Equivalent Sample Rate | 25GSa/s | ||
| SEC/DIV Range | 2nS/div-2000S/div (in a 2, 4, 8 sequence) | ||
| Delay Time Accuracy | 500ps | ||
| Vertical | |||
| A/D Converter | 8-bit resolution | ||
| VOLTS/DIV Range | 2mV/div～5V/div at input BNC | ||
| Position Range | ±50V(5V/div),±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div)±400mV(20mV/div～2mV/div) | ||
| Record Length | Single-channel: Maximum 2M; Dual-channel:Maximum 1M | ||
| Trigger | |||
| Trigger Sensitivity (Edge Trigger Type) | DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full AC: Attenuates signals below 10Hz HF Reject: Attenuates signals above 80kHz LF Reject: Attenuates signals below 150kHz Noise Reject: Reduces trigger sensitivity | ||
| Trigger Level Range | CH1,CH2: ±8 divisions from center of screen | ||
| Trigger Level Accuracy, typical (Accuracy is for signals having rise and fall times ≥20ns) | CH1,CH2: ±(0.3div×V/div) (within ±4 divisions from center of screen) | ||
| Holdoff Range | 100ns-10s | ||
| Trigger Type | |||
| Edge | Trigger on the rising or falling edge | ||
| Pulse Width | Trigger (when >,<,=,≠) on positive or negative pulses Pulse Width Range: 20ns-10s | ||
| Video | Trigger on an NTSC, PAL, or SECAM standard video signal Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM) | ||
| Slope | Trigger (when >,<,=,≠) on a positive or negative slope Set Time: 20ns–10s | ||
| Overtime | from the rising or falling edge Set Time: 20ns-10s | ||
| Alternate | Internal trigger on edge, pulse width, video or slope | ||
| Measurement | |||
| Cursors | Manual: The difference between voltage cursors △V; the difference between time cursors △T; 1/△T calculated by Hz. Tracing: The voltage and time at a waveform point | ||
| Automatic | Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width | ||
| Meter Mode | |||
| Max.Resolution | 6,000 Counts | ||
| DMM Testing Modes | Voltage, Current, Resistance, Capacitance,Diode & Continuity | ||
| Max. Input Voltage | AC: 600V, DC: 800V | ||
| Max. Input Current | AC: 10A, DC: 10A | ||
| Input Impedance | 10 MΩ | ||
| Isolation | |||
| The float voltage between BNC and Ground | 600V CATIII, 1000V CAT II | ||
| The float voltage between each Channel | 600V CATIII, 1000V CAT II | ||
| The float voltage between Multimeter and Ground | 1000V | ||
| between input Ports directly | 400V CAT II | ||
| Input by 10:1 probe | 600V CATIII, 1000V CAT II | ||
| The Max input voltage of Multimeter | DC 800V,AC 600V | ||
| Display | |||
| Type | Right angle 5.6 16-digit color LCD | ||
| Resolution | 640*480 dots | ||
| Contrast | 16 gears, with the progress bar to show adjustment | ||
| Interface | USB host and USB slave, Lan Optional | ||
| Power Supply | |||
| Voltage | DC Input:12--17VDC, 2000mA | ||
| Mechanical | |||
| Size | 245 x 163 x 52 (mm) | ||
| Weight | 1.3KG (exclusive of packing and accessories) | ||
6．軟件：
Operating system: Windows NT, Windows 2000, Windows XP ,VISTA
7．SecondDesign：
Supply DEMO code (VC、VB、LABVIEW)
