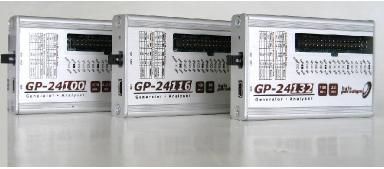

USB總線，100MHz采樣，16路數字波形發生器
產品簡介： 16路數字波形發生器卡，8路雙向控制，加邏輯分析儀。
售價：￥19800
|
型號 |
數據/圖形帶寬 |
最大采樣頻率 |
嵌入式內存 |
|
GP-24100 |
16 bits |
100 MHz |
8 MByte |
|
GP-24116 |
16 bits |
100 MHz |
16 MByte |
|
GP-24132 |
16 bits |
100 MHz |
32 MByte |
GP-24116 is a USB 2.0 high speed digital patter generator, logic analyzer and bi-directional protocol (SPI/I2C) host adapter.
GP-24116 is the mid-range of GP Series GP-241xx devices.
GP-241xx devices differ by the included embedded memory buffer.
With its plain 16 MByte embedded memory buffer, 100 MHz operation on all 16 digital lines, and a sustained USB throughput up to 30 MByte/s, the GP-24100 is a powerful general purpose and evolutive PC-based solution that ideally complements your lab equipment for digital electronic system design, test and debug.
With its ADWG / pattern generator mode of operation, the GP-24116 allows you to generate extended depths of arbitrary digital stimuli, directly from a PC through a USB connection.
Conversely, the Analyzer mode of operation transforms the GP-24116 into a simple logic analyzer to collect and analyze digital data.
With the GP-24116, generating and collecting digital data to stimulate and analyze electronic systems have never been easier. Moreover, the provided 8PI Control Panel software offers free rich graphical, scripting (TCL/tk) and programming (C/C++) interfaces to automate tasks and make a bridge between your own programming environment and a real hardware prototype.
| Number of digital channels | 16 |
| Max. frequency | 100 MHz |
| Embedded memory | 16 MByte |
| Maximum throughput | 200 MByte/s |
| Maximum sustained throughput | 30 MByte/s |
| Maximum data depth per run | 100 MByte |
