數據采集及回放系統

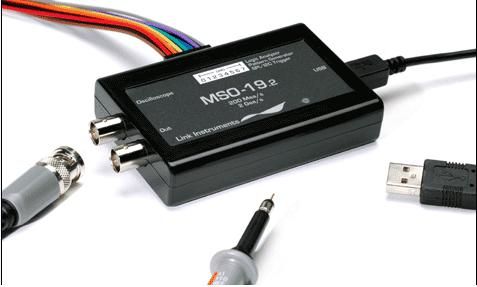

200MHz虛擬示波器+波形發生器+邏輯分析儀+頻譜分析儀

1、USB接口單通道200MHz/s采樣數字示波器，等效采樣：1GHz/s2、8通道邏輯分析儀3、單通100MHz道波形發生器4、單通道100MHz 頻譜分析 5、先進的觸發，自動測量

生產廠商： 迪陽公司代理 產品型號： MSO--19
產品簡介： 1、USB接口單通道200MHz/s采樣數字示波器，等效采樣：1GHz/s2、8通道邏輯分析儀3、單通100MHz道波形發生器4、單通道100MHz 頻譜分析 5、先進的觸發，自動測量

售價：￥2980

示波器+邏輯分析儀+波形發生器+頻譜分析儀

　概述：

1、USB接口單通道200MHz/s采樣數字示波器，等效采樣：1GHz/s

2、8通道邏輯分析儀

3、單通100MHz道波形發生器

4、單通道100MHz 頻譜分析

5、測量帶寬：60MHz

6、先進的觸發，自動測量

7、上升沿/下降沿觸發，脈沖寬度，脈沖計數觸發。

8、SPI，I2C解碼

9、示波器與邏輯分析儀

概述：

˙輸入

1 個通道的示波器
8 個通道的邏輯分析儀

合波形發生器

˙高速采樣
     單次采樣: 200 MSa/S
     等效采樣: 1GSa/S
     Bandwidth:

˙USB 2.0 接口

˙先進觸發方式
     Level /edge
     Glitch
     脈沖寬度和計數
    8 位邏輯分析儀
     SPI
     I2C

˙ 100Mpt/s 波形發生器卡

˙ 100MHz 頻譜分析儀/FFT

˙ SPI 合 I2C 解碼分析

˙ 自動設置匹配

˙ 快速精確測量

˙ Data Storage
With save and export capabilities

˙ Simple Operation

˙ FrontPanel^TM Oscilloscope software supports Windows

˙ Application Note:

Using the" class=MsoNormal align=left> ˙ Application Note:

Introduction to FPGA debugging using the" class=MsoNormal align=left>

交叉觸發：

The" class=MsoNormal align=left>can be straight forward rising and falling edge or further qualified by pulse width and pulse count. Glitches

can be detected using pulse width triggering. Digital domain triggering can use a 8 bit wide digital word or

by using the advanced serial trigger( I2C and SPI bus protocols).

波形發生器：

The 100Mpt/S pattern generator has many features not found on other pattern generators. Since it has

shared pins with the Logic Analyzer the pattern data can be tri-stated to create bidirectional bus signals.

The PG also runs on an independent clock from the logic analyzer, hence you can create a slow signal and

analyze the response at a much faster sampling rate. The pattern buffer length is adjustable and can be

looped to create complex patterns. The PG can start manually or be synchronized with the MSO trigger inputs.

高速采集：

High speed sampling is key to getting a good capture. The 200MSa single shot sample rate and 60MHz

bandwidth will allow you see a great picture of a 60MHz signal in single shot mode and an even faster one

if you use RIS mode sampling.

頻譜分析儀：

The FFT Spectrum Analyzer has controls for FFT window, FFT type, FFT resolution. The software also

supports averaging, memory and plot subtraction. This allows for a whole range of spectral analysis

including: Frequency response analysis, Power supply noise analysis, etc...

Maximum FFT frequency analysis speed of 100 MHz (with 3dB roll-off at 60MHz).

FFT data can be saved to disk and exported to other programs such as Excel, Mathcad, etc..

This example shows use of FFT averaging to identify and reduce noise.

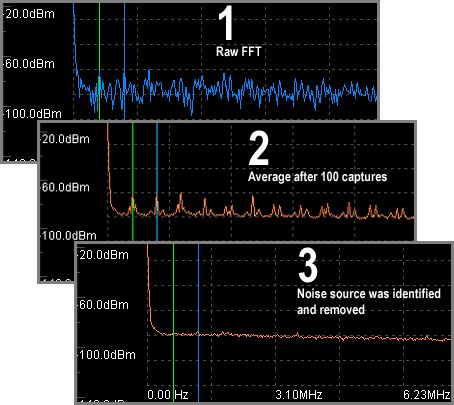

Image 1: Spectral plot of noisy output of an

Op Amp circuit.

Image 2: Average after 100 captures of the

same circuit. Notice how clear the fundamental

and harmonic frequencies are displayed and

the random noise is suppressed.

Image 3: The noise source was identified and removed.

波形測量
　

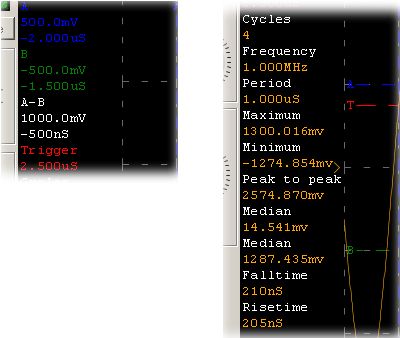

Standard waveform measurements are included and can be displayed on the screen right next to the traces.

SPI 和 I2C 解碼

Display and decode SPI and I2C serial bus protocols as well as trigger on them.

SPI and I2C signals can also be viewed as timing waveforms and statelist style display.

便捷的操作

Installation is a snap.
Make measurements in your first half hour.
Simple controls make operation intuitive.
Perform sophisticated operations that you couldn't even dream of doing with a knob based DSO.
Save default setups to disk for easy recall at a future date.
Screen shots can be pasted into documents and annotated in your favorite image editing program.

數據存儲

Data can be saved to disk and reloaded in the future or exported in CSV format for use with other

software (Excel, Mathcad, etc...).

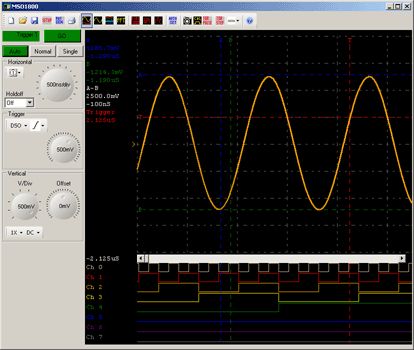

The windows oscilloscope software takes advantage of your computer's large color screen.

Stand-alone oscilloscope display screens represent a compromise at best. Few people would choose a 7"

or 9" monitor as the screen for their PC. So why use a small monitor for an oscilloscope? Many people are

now using dual monitor PC's - our software will work there also - Imagine having a 30" wide trace window.

The speed of your PC does not significantly affect the performance of our instruments

All of the high speed acquisition is done with the MSO hardware, the speed of your PC is not a factor.

The PC is used for display and for the user interface. If your PC is fast enough and has enough memory

to run windows well, it will run our products well also.

The Instrument has high speed samplers and buffers. It can acquire at up to 1 GSa/s and stores the data in

it's own high speed data buffers. When these buffers are full everything is transferred to the PC.

FONT-SIZE: 12pt">規格

時基

(單次采樣)

200MSa/s 到 10KSa/s
5nS/sample 到 100uS/sample
50nS/division 到 10mS/division

(重復采樣)

2GSa/s 到 1GSa/s
5nS/division to 100nS/division

精度

+/- 0.01%

分辨率

5ns

斜率

< 5 ns

輸入

1 DSO + 8 Logic Analyzer

輸出

8 Pattern Generator + 1 Trigger out (TTL)

波形發生器

速率

100MSa/s...10KSa/s

緩存

Max: 1023 points to 3 points

Arming control

Sync with MSO trigger, sync with MSO arm and manual start.

Loop control

Continuous and variable.

Code generation wizard

SPI, Counter, clock....

Output control

Individual channel and sample by sample output enable.

模擬量

帶寬

60MHz

增益范圍 (每格)
滿刻度 = 8 格

Probe	每格電壓	滿刻度電壓
1x	50mV 到 500mV 每格	400mV 到 4V
10x	500mV 到 5V 每格	4V 到 40V

最大輸入電壓

max input voltage at probe tip depends on probe type (1x and 10x,)

Probe	Continuous
BNC	± 20V DC
1X probe:	± 20V DC
10X probe:	± 200V DC

垂直范圍

8 格

偏移范圍

± 4 divisions

偏移分辨率

12.5mV

耦合方式

AC and DC

電容量

1MΩ // 15pF

DC 精度

± 2%

數字

阻抗

100K ohm || 2pF

電容量

<500 mv

最大.輸入電壓

+5.5V DC

帶寬

100MHz

門限電壓

0.6V 到 1.65V (1.2, 1.5, 1.8,2.5,3.0, 3.3, 5.0V Logic Families)

內存

緩存尺寸

1000 點/每通道

Trigger

類型

上升沿 (調節電平),
下降沿 (調節電平),
脈沖寬度和脈沖計數

8 位寬邏輯分析儀
I2C
SPI

外觸發

所有的數字通道都能用于外觸發。

外觸發輸入

有.

模式

自動, 普通和單次.

自動設置

有.

范圍 (垂直)

8 格.

分辨率

12.5mV

軟件

Windows XP/Vista

有

頻譜分析 / FFT

有

測量

有

物理

接口

USB

探頭

One 1x/10x switchable probe is included.

連接

BNC: 2 total: Input and trig-out
Logic Analyzer/Pattern Generator: 8
USB

效準點

Yes

電源

USB 口取電

尺寸

4.0" x 2.4" x 0.8" (102mm x 61mm x 20mm)
2.5oz. (70g) (MSO only)

運輸包裝: 9.3" x 6.2" x 2" (240mm x 160mm x 50mm)
運輸重量: 14.3oz.
