PXI總線，3U，8通道數字延遲信號發生器

4路獨立高精度延時輸出通道, 4路獨立低精度延時輸出通道 1 ps高精度延時輸出分辨率, 5 ns低精度延時輸出分辨率可配置的延時幅值和脈寬定義
PXI星形觸發, 板載時鐘, 外部觸發輸入 (TRIG IN)觸發支持基于-VISA的LabVIEW驅動, Windows驅動支持

生產廠商： 迪陽公司代理 產品型號： GFT9404
產品簡介： 4路獨立高精度延時輸出通道, 4路獨立低精度延時輸出通道 1 ps高精度延時輸出分辨率, 5 ns低精度延時輸出分辨率可配置的延時幅值和脈寬定義 PXI星形觸發, 板載時鐘, 外部觸發輸入 (TRIG IN)觸發支持基于-VISA的LabVIEW驅動, Windows驅動支持

售價：￥34800

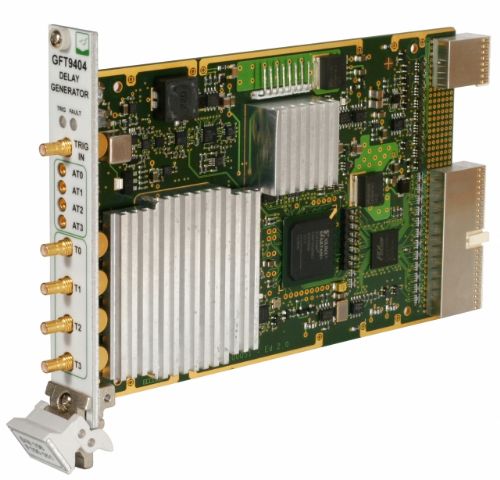

Greenfield GFT9404模塊在PXI平臺上提供高精度數字延時生成。它提供具有1 ps延時分辨率的4路獨立高精度延時通道和具有5 ns延時分辨率的4路輔助延時通道。每路延時輸出可依照幅值和脈寬定義接受配置。GFT9404提供針對Windows操作系統的驅動支持以及基于NI-VISA的LabVIEW儀器驅動。

	特性：

Four independent delay channels
1 ps resolution
< 50 ps rms jitter
> 20 second delay range
Four auxiliary delay channels
5 ns resolution
< 100 ps rms jitter
> 20 second delay range
Front panel or PXI bus
PXI 3U, 1 slot, compact packaging

	Description

The GFT9404 module provides four independent delay channels (T0 to T3). The delay resolution is 1 ps, and external trigger to channel jitter is less than 50 ps. SMB outputs deliver 5 V, 2 ns rise time, under 50 . Amplitude and width are adjustable on each output pulse.
The GFT9404 also provides four auxiliary delay channels to the front panel (AT0 to AT3). The copy of these four channels is provided on the PXI bus (PXI trig 0 to PXI trig 3). The delay resolution is 5 ns (one time base clock) and trigger to channel jitter is 100ps.
One input trigger (TRIG IN), PXI STAR trigger, or internal frequency is used to trigger all output channels.

This free software provides a simple method to configure settings for each channel (delay, output amplitude, output width), trigger source, trigger mode, and to control the state of the instrument. The configuration information of the instrument can be stored to disk and restored. The software is designed to allow multiple GFT9404 to be installed and operate in the same PXI chassis. Each module is specified by its serial number.
